How to Crop, Straighten and Expand Photos in Photoshop – Day 13

The Crop Tool Can Add as Well as Take Away

The crop tool has quietly become one of the most capable things in Photoshop, and almost nobody uses more than a fifth of it. It straightens, it overlays composition guides on your image while you work, and since Generative Expand it can crop to a frame larger than the photograph you started with.

Press C and everything below happens inside one tool.

Ratios, and the Clear Button That Frees You

The ratio dropdown in the options bar constrains the crop — 1:1 for a square, 16:9 for something cinematic, or the print sizes if you know where the image is going. Set a ratio and drag any handle: the shape holds.

The thing that catches people is that the ratio stays locked until you clear it. If your crop refuses to become the shape you want, hit Clear next to the ratio field. That is all it is.

With a crop active you can also click inside the box and drag — the frame stays still and the image moves underneath it, which is a more natural way to find a composition than repositioning the handles.

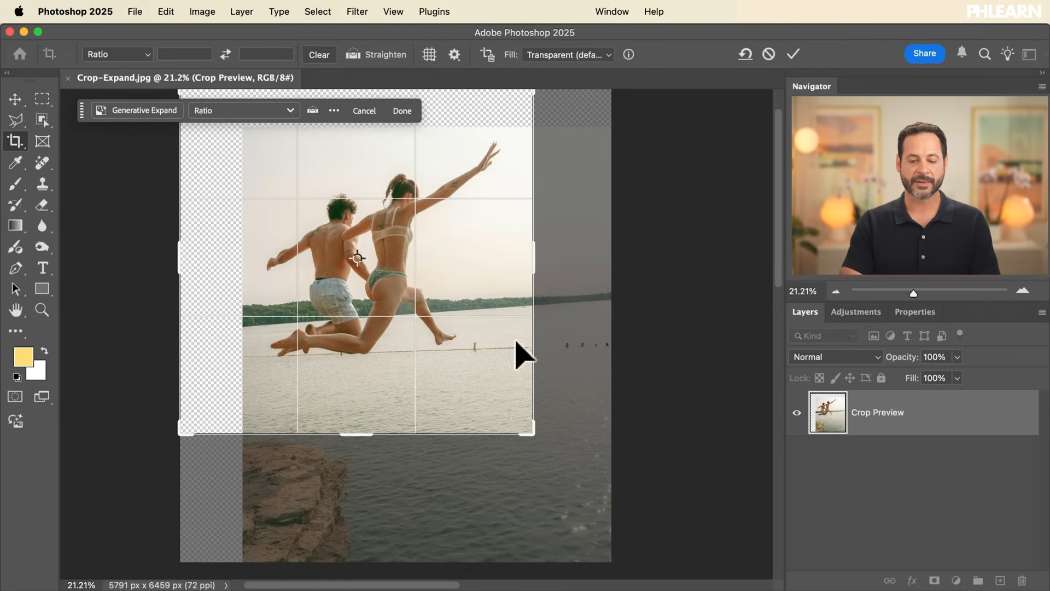

Turn the Crop Shield Up or Down

Behind the gear icon is Enable Crop Shield and its opacity. By default the area you are cropping away stays faintly visible, which is helpful while you are deciding.

Push the opacity to 100% and everything outside the crop goes solid, so you see only the finished image. Switching to full opacity for the final judgement is worth doing — ghostly leftovers around the edges influence how the crop reads.

Straighten a Horizon in Two Seconds

Rotate While You Crop

Move the cursor just outside a corner handle until it becomes a curved arrow, then drag. The image rotates inside the crop box and you can see the horizon coming level against the overlay grid.

The Straighten Tool

Faster, and the one to use. Click Straighten in the options bar or the contextual task bar, then click and drag a line along whatever should be horizontal — the waterline, a rooftop, a shelf. Let go and Photoshop rotates the whole image so that line is level, and sets the crop accordingly.

It works on verticals too. Drag along a doorframe or a lamppost and it will straighten to that instead.

The Overlays Are the Underused Part

The overlay dropdown draws composition guides over the live crop. They do nothing to the file; they exist to help you decide.

Rule of Thirds

Two vertical and two horizontal lines. The idea is that the interesting things belong on the intersections and a horizon belongs on the upper or lower line rather than through the middle. It is a guideline, not a law, but it is a fast way to turn a passable crop into a good one.

The Golden Spiral

A Fibonacci spiral you can flip and rotate. Instead of marking points it describes a path — the route your eye travels through the picture, tightening toward the point where it should come to rest.

On the sample image it follows one subject’s arm, up along another’s, around the curve and settles on the friends waiting in the water. That is a compositional argument the rule of thirds cannot make, and it is why this overlay is worth trying on anything with movement or a lead-in line.

The Rest of the List

Triangle, diagonal and grid overlays are also there. Cycle through them on a photograph you are unsure about; one of them usually suggests a crop you would not have found on your own.

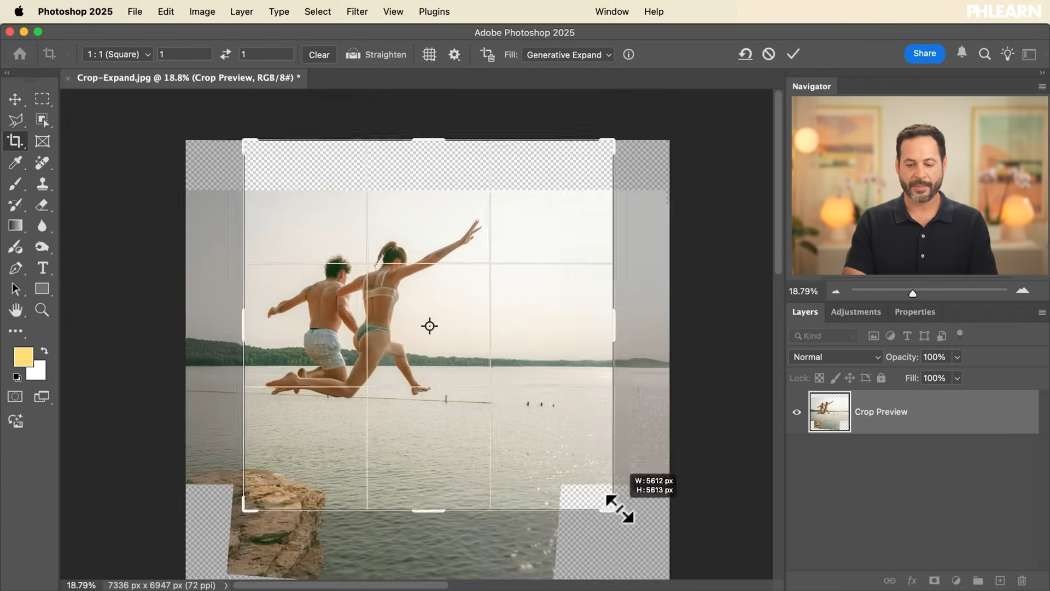

Generative Expand: Crop Outside the Photograph

Drag the crop box beyond the edge of the image and you get empty space. Historically that was a dead end. Now it is a feature.

1. Set Fill to Generative Expand

   In the options bar, next to the ratio controls. If it is set to Transparent you will get transparent pixels and nothing else — this single dropdown is the whole difference.

2. Drag the Crop Box Past the Edges

   Straighten first if the image needs it; straightening always leaves wedge-shaped gaps in the corners, and this fills them too.

3. Commit and Wait

   Click the check mark or press Generate. Photoshop invents everything in the empty area based on what surrounds it, and returns several variations.

4. Cycle the Variations in the Properties Panel

   As with any generative result, look at all of them. The differences at the edges can be significant.

Crop, Expand, Then Crop Again

The workflow that makes this genuinely useful is iterative. Expand once, look at it with the overlays on, decide you want more room at the top, and simply crop outward again — Generative Expand fills the new gap the same way.

Because each pass lands as its own generative layer, you can hide them all and compare against the original at any point. Straighten, expand, reconsider, expand again, then settle on a ratio at the end when you can finally see the whole picture.

A Sensible Order of Operations

Straighten first — every other decision depends on level. Clear any ratio so you are free to explore. Turn on an overlay and find the composition. Then set a ratio if the image has a destination, and let Generative Expand fill whatever the reframe opened up.

Doing it the other way round means locking yourself to a shape before you know what the photograph wants to be.

Reframe One of Your Own

Download the sample image and straighten it with the Straighten tool, then try the same crop under Rule of Thirds and under the Golden Spiral and see which one you prefer. Then find a photograph of your own that felt too tight and expand it outward. The overlays are the part most people never touch and the part that improves your framing fastest.

Day 12 covered transforming and aligning layers. Tomorrow, Day 14 is about dynamic text.

Quick Reference: Keys, Menus and Settings

• Crop toolC
• Set or free a ratioRatio dropdown in the options bar (1:1, 16:9, 8 x 10); Clear to unlock it
• Crop shieldGear icon > Enable Crop Shield, Opacity up to 100% to see only the crop
• StraightenStraighten in the options bar or contextual task bar, drag along the horizon
• Composition guidesOverlay dropdown: Rule of Thirds, Golden Spiral
• Crop past the edgesFill: Generative Expand, drag beyond the image, check mark or Generate; variations in the Properties panel
